3. Technical Design

Pipeline overview

Rather than presenting the inference pipeline as a sequence, I describe the challenges it was designed to solve. The pipeline’s structure will fall out naturally as a response to these problems.

Challenge 1: high-resolution requirements under real-time constraints

Most popular CNNs like ResNet, AlexNet, YOLOv8 and EfficientNet are capped off at an input resolution of 600x600, which is far below the resolution we need (1920x1080). As we have stated, badminton shuttles occupy a height and width 1/30 of the frame, and thus become a blob with any significant downsampling.

On top of this, we want to achieve inference speeds above 60 FPS, and since FLOPs scale quadratically with resolution, resolutions above 360x360 are not seriously considered.

On the one hand, we need high resolution to pinpoint the shuttle head, but low resolution to meet runtime constraints.

Impact on pipeline:

This is a paradox if we insist on solving the problem statement with a single CNN; we must split the task somehow. Here, we are lucky because while locating the precise position of a shuttle head at low resolution is impossible (for someone with 10+ years of experience), finding its approximate region is not. Conceptually, we could look for a white blob or infer from the players’ movements.

Thus, we split inference into two stages; stage 1 for locating the approximate region of the shuttle using frames downsampled to low resolution, and stage 2 for precisely locating the shuttle head once we zoom in around the rough prediction (zooming in means taking a low-resolution but sharp crop around the stage 1 prediction). We thus have a course-to-fine point estimation pipeline.

This coarse-to-fine pipeline not only satisfies our resolution-FPS requirements but also decouples training, with each stage having its own loss functions, optimizers etc. Furthermore, it allows us to intelligently combine models from the two stages later to increase inference stability (discussed under Modes of inference).

Challenge 2: the need for context

While I was labeling shuttle heads, I would often find them too blurry to localize with one frame alone. In those cases, I would roll back a few frames, find one in which the shuttle was clearer, and infer from the “good” frame where the shuttle head in the current frame should be. Since shuttle heads follow a smooth trajectory outside of being hit and do not change orientation much between frames, we can accurately infer from past data.

Impact on pipeline:

Both stages are fed the current frame, 3 prior frames and a sequence of triplets with structure (x, y, visibility) from the immediate past. For convention, these temporal inputs are ordered oldest to most recent.

Together, this gives a context-enriched, coarse-to-fine pipeline that leverage the task's physical properties I learned while labeling. Figure 1 illustrates the inference pipeline.

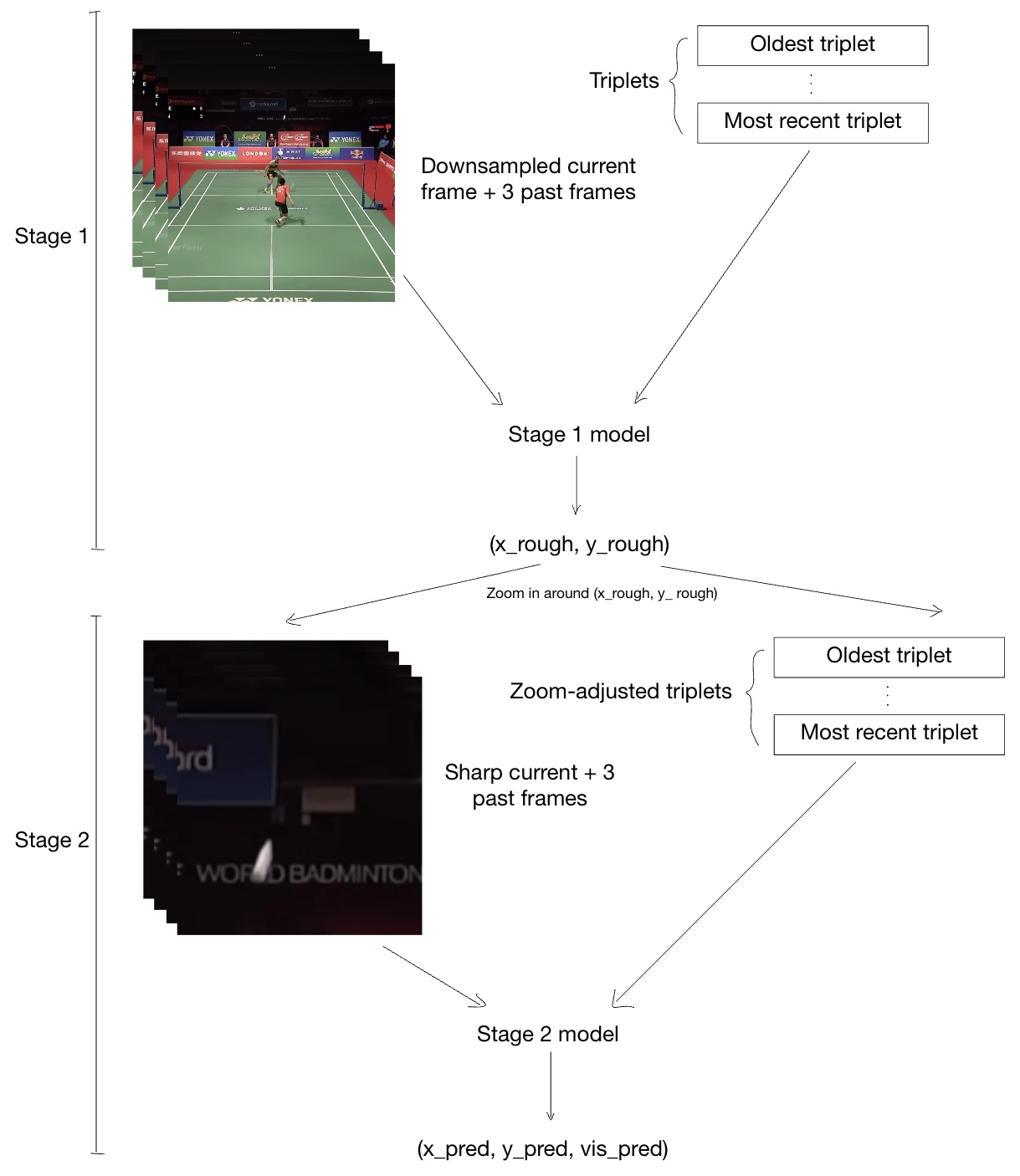

Figure 1: Conceptual diagram of the inference pipeline

Figure 1: Conceptual diagram of the inference pipeline

Dataset overview

My mum and I created the dataset with 5,800 samples. After shuffling, 90% of samples were labeled as training, 5% were labeled validation and testing each. The structure of each sample is given in Figure 2.

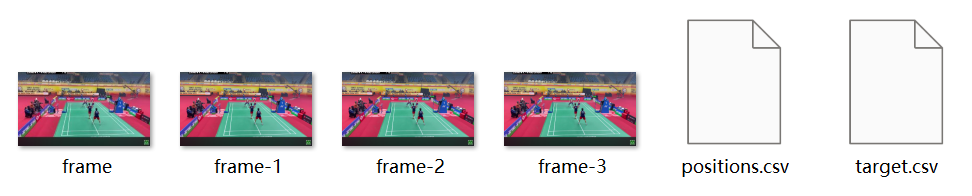

Figure 2: Structure of each sample in the dataset

Figure 2: Structure of each sample in the dataset
  • frame is the current frame.
  • frame-1 is the most recent past frame and so on for the other two.
  • positions.csv contains 30 past triplets: (x_truth, y_truth, 1) if the shuttle head is present in its corresponding frame and (0, 0, 0) otherwise.
  • target.csv records the ground truth triplet for the current frame.

Data augmentation

To maximize robustness across lighting conditions, noise profiles, and camera angles, I selected the following set of augmentation techniques.

1. Uniform color jitter across frames

Enhances the models' adaptability to various lighting conditions by changing brightness, contrast, saturation, and hue uniform across the 4 frames.

Implementation
# dataset.py
self.color_jitter = torchvision.transforms.ColorJitter(
    brightness=0.3, contrast=0.2,
    saturation=0.2, hue=0.05
)

2. Independent Gaussian noise per frame

Prevents overfitting to low-level pixel patterns and encourages focus on higher-level motion and shapes.

Implementation
# dataset.py
def apply_noise(frames, noise_std=0.01):
    """
    Apply different Gaussian noise per frame.
    Takes in a list of images and returns a list of tensors.
    """
    noisy_frames = []
    for img in frames:
        img_tensor = transforms.ToTensor()(img)
        noise_std = np.random.uniform(low=0, high=noise_std)
        noise = torch.randn_like(img_tensor) * noise_std
        img_tensor = torch.clamp(img_tensor + noise, 0, 1)
        noisy_frames.append(img_tensor)
    return noisy_frames

3. Horizontal flipping with positional adjustment

Simulates mirrored camera angles with appropriate x-coordinate inversions.

Implementation
# dataset.py
if self.apply_flip and random.random() < 0.5:
    current_tensor = torch.flip(current_tensor, dims=[2])
    past_tensor = torch.flip(past_tensor, dims=[3])
    positions_tensor[:, 0] = 1.0 - positions_tensor[:, 0]
    target_tensor[0] = 1.0 - target_tensor[0]

4. Triplet Perturbation

Perturbs past (x, y) triplets slightly to discourage over-reliance on past positional data.

Implementation
# dataset.py
def perturb_positions(positions, max_perturb=0.02):
    """
    Perturbs visible (x, y) positions in a list or NumPy array.
    Args:
        positions: list of [x, y, vis] or NumPy array of shape [T, 3]
        max_perturb: max change in normalized coords (±)
    Returns:
        np.ndarray of shape [T, 3] with perturbed positions
    """
    positions = np.array(positions, dtype=np.float32).copy()
    for i in range(len(positions)):
        x, y, vis = positions[i]
        if vis >= 0.5:
            dx = np.random.uniform(-max_perturb, max_perturb)
            dy = np.random.uniform(-max_perturb, max_perturb)
            new_x = np.clip(x + dx, 0.0, 1.0)
            new_y = np.clip(y + dy, 0.0, 1.0)
            positions[i][0] = new_x
            positions[i][1] = new_y
            # visibility stays unchanged

    return positions

Reflections on Data Design Choices

Some transformations such as affine warps and perspective distortions were intentionally excluded to preserve physical realism. However, in hindsight, random rescaling would have added resilience to changes in video scale, something the current models remain sensitive to (see Limitations).

Key design decisions

Stage-1 CNN backbones: stage-1 models used either EfficientNet B3 or EfficientNetv2 B3 as their CNN backbones. The input size for both is 300 x 300, hence we must downsample all 4 frames before extracting feature maps. I picked the B3 version for both as it strikes a good balance between input resolution and FLOPs.

Stage-2 CNN backbones: stage 2 uses either EfficientNet B0 or EfficientNetV2 B0, both with input dimensions of 224×224. This defines the precise crop size taken from the original frame, centered around the Stage 1 estimate. B0 was chosen for its very low FLOPs. However, the small crop size means the tolerance for stage-1 error is limited; only ±112 pixels in each direction.

Heatmap paradigm: In later versions of both stages, all models use heatmap-based localization, which is explained below.

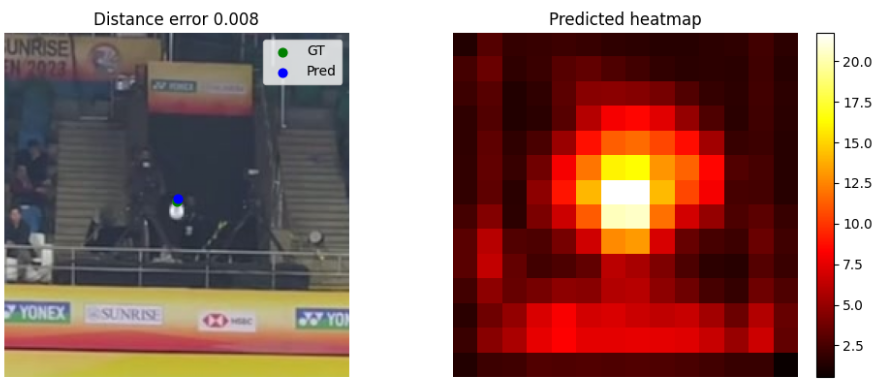

Figure 3: Demonstration of the heatmap approach

Figure 3: Demonstration of the heatmap approach

On the left of Figure 3, we feed a crop of the current frame into a trained stage-2 model. The crop is first sliced into a 14 x 14 grid.

For each cell in the grid, the model looks at that cell in the current and past 3 crops and outputs a single real number representing how likely that cell contains the shuttle head. Applying softmax gives a probability distribution, which we average to get a positional prediction, which in this case is very close to the ground truth (GT).

Interpolation physics model: past triplets contribute to the overall heatmap through a simple interpolation model: take 3 triplets in the past and perform quadratic interpolation on the xy-coordinates to predict the xy-coordinates of the current triplet.

Figure 4 shows that this generates a heatmap of its own, which we add to the CNN-heatmap to influence the final prediction. A quadratic interpolation was picked as it is robust to overfitting and can be expressed neatly in closed form.

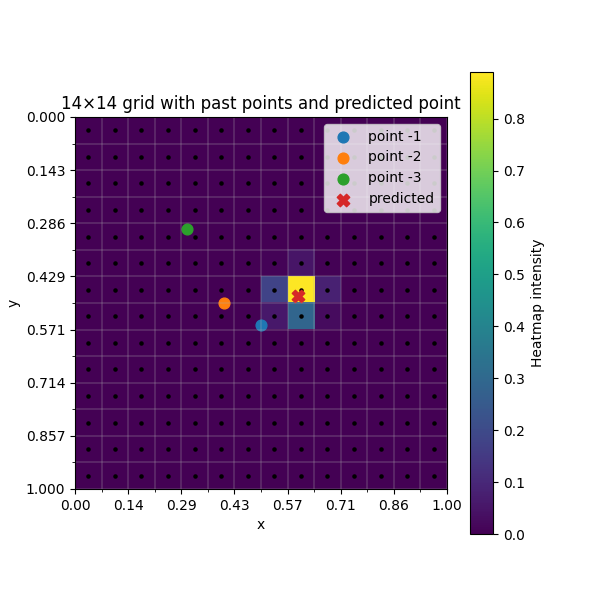

Figure 4: Example of heatmap generated by quadratic interpolation

Figure 4: Example of heatmap generated by quadratic interpolation

Modes of inference

At inference time, we choose between two distinct inference steps, which offer different trade-offs between accuracy and computational cost.

Calibration step closely resembles the inference pipeline described in Figure 1, with two key modifications:

  • We employ an ensemble of two stage-2 models (a main model and a supporting model) to jointly predict the shuttle head’s visibility. This ensemble approach improves visibility prediction at the cost of doubling stage-2 compute. However, visibility prediction remains challenging and is prioritized for updates.
  • Instead of zooming in on the rough estimate (x_rough, y_rough), we construct an equilateral triangle of circumradius 0.06 centered at that point and zoom in at its three vertices. This increases the stage-2 catchment area substantially, though it triples computational cost.

As a result, we obtain six prediction triplets from stage 2: three spatial zooms from the triangle, each processed by two models. We select the pair with the highest visibility score, and use the triplet predicted by the main stage-2 model as the final output.

In summary, running a calibration step on a frame invokes 4 passes through B3 (current + 3 past) and 24 passes through B0, taking roughly 20 GFLOPs including other non-backbone computations. Its large catchment area with heavy computational cost gives it the name calibration.

Fast step bypasses both stage-1 and triangle construction, zooming in directly on the coordinates predicted in the previous frame. If the previous triplet is (0, 0, 0), we skip all computations and return (0, 0, 0). For visibility prediction, fast step still uses two stage-2 models for ensemble voting.

In summary, running a fast step on a frame invokes only 8 passes through B0, taking roughly 4 GFLOPs.

Modes of inference answer the question “which step should we use for the current frame”? We introduce calibration mode, fast mode and smart mode.

Calibration mode

Runs a calibration step every single frame. Very slow and unstable (the predictions tend to jump around); serves more as a benchmark than a practical inference method.

Fast mode

Runs a calibration step once every self.fast_calib_interval frames (configurable). Every other frame is processed with fast steps. This mode is more stable and much faster than calibration mode.

Implementation
# engine.py
elif self.mode == "fast":
    # Calibrate every K frames regardless
    if (self._t % self.fast_calib_interval) == 0:
        gx, gy, gv = self._calibration_step(cur_full, pos30)
        self._roll_past(cur_full)
        self._t += 1
        return gx, gy, gv, False
    else:
        # Use last if visible; else calibration
        if int(positions_deque[-1][2]) == 1:
            last_xy = (float(positions_deque[-1][0]), float(positions_deque[-1][1]))
            gx, gy, gv = self._fast_step(last_xy, cur_full, pos30)
        else:
            gx, gy, gv = (0, 0, 0)

Smart mode

Runs calibration steps only when we detect pathological behaviors. Below, we outline the pathologies smart mode detects and the corresponding mitigation strategies.

Pathology 1: false negatives from missed shuttle visibility

One problem with fast mode is that if any step predicts “invisible shuttle head”, we would have a sequence of “invisible shuttle head” predictions until the next calibration step. In the worst case, we must wait self.fast_calib_interval frames; potentially a lot of false negatives.

Solution 1A: detect newly invisible predictions

If the previous prediction was visible, but the current fast prediction is invisible, smart mode triggers a calibration step to verify whether the shuttle head is truly missing.

Implementation
# engine.py
p3x, p3y, p3v = self._fast_step(last_xy, cur_full, pos30)
last_two = self._last_two(positions_deque)
# if last_two is not None:
(x1, y1, v1), (x2, y2, v2) = last_two  # p1, p2
v1 = int(v1); v2 = int(v2)
# trigger 4: p2 (last prediction) visible but p3 invisible
if v2 == 1 and p3v == 0:
    self.freshly_invisible += 1
    gx, gy, gv = self._calibration_step(cur_full, pos30)

Solution 1B: cap the maximum consecutive invisibility tolerated

On top of this, we define self.inv_len as the number of consecutive “invisible shuttle head” predictions tolerated before triggering a calibration step.

Implementation
# engine.py
# (1) N consecutive invisibles?
if self._last_n_invisible(positions_deque, self.inv_len) \
    and (self._t - self._last_n_invisible_trigger_frame) >= self.inv_len:
    gx, gy, gv = self._calibration_step(cur_full, pos30)
    self._last_n_invisible_trigger_frame = self._t

The code above also ensures that if, for example, self.inv_len = 8, the calibration check is performed at most once every 8 frames. Without this safeguard, the system would re-check every subsequent frame after the 8th invisible prediction, leading to redundant calibration attempts.

Pathology 2: false positives from background artifacts

Due to poor visibility prediction, it is frequently the case in both calibration and fast modes that we get a sequence of “visible shuttle head” predictions in the background or over players’ shirts. In egregious cases, the false positive predictions flit across the screen at a speed impossible for real shuttle heads.

Solution 2A: large angular deviations

These false positives do not follow a smooth trajectory and are characterized by large angles between consecutive predictions. Thus, we define a configurable variable self.angle_thresh such that if the coordinates of three consecutive visible predictions form an angle larger than self.angle_thresh, then we trigger a calibration step.

Solution 2B: large positional jumps

Similarly, if the Euclidean distance between the last prediction and the current fast prediction exceeds jump_thresh, we trigger a calibration step.

Implementation
# engine.py
p3x, p3y, p3v = self._fast_step(last_xy, cur_full, pos30)
last_two = self._last_two(positions_deque)
# if last_two is not None:
(x1, y1, v1), (x2, y2, v2) = last_two  # p1, p2
v1 = int(v1); v2 = int(v2)

if v2 == 1 and p3v == 1:
    d2 = np.array([p3x - x2, p3y - y2], dtype=np.float32)
    # trigger 3: jump too large
    jump = float(np.linalg.norm(d2))
    if jump >= self.jump_thresh:
        self.big_jump += 1
        gx, gy, gv = self._calibration_step(cur_full, pos30)
        return gx, gy, gv, True
    # triggers 2 when p1 and p2 are visible, and we got a visible p3
    if v1 == 1:
        d1 = np.array([x2 - x1, y2 - y1], dtype=np.float32)
        # trigger 2: angle between d1 and d2 too large
        ang = self._angle_between(d1, d2)
        if ang >= self.angle_thresh:
            self.big_angle += 1
            gx, gy, gv = self._calibration_step(cur_full, pos30)
            return gx, gy, gv, True

Pathology 3: frequent calibration triggers indicate model uncertainty

So far, if we detect unstable behavior during a fast step, we would replace the fast step prediction with one from calibration step. However, calibration step is not error-proof and during inference, we have no way of knowing if the prediction returned from the calibration step is correct.

Solution 3: penalize frequent calibrations with triplet zeroing

A heuristic we use is that triggering a calibration step implies unstable inference. Thus, if we trigger calibration steps frequently during a short time window, then we can be confident that some instability is plaguing inference e.g. a player’s white shirt suddenly catching bright glints, giving patches that resemble shuttles.

To penalize too many calibrations triggered within a short time window, we define a buffer calib_window which records the number of calibrations within the last 6 frames. If at any time, that number exceeds 4, then we replace the last 6 triplets with (0, 0, 0) to eliminate the noisy output.

Implementation
# video_inferencer.py
if sum(calib_window) >= 4:
    n = len(calib_window)
    for i in range(n):
        positions_deque[-(i + 1)] = [0.0, 0.0, 0]
        f, _, _, _ = out_window[-(i + 1)]
        out_window[-(i + 1)] = (f, 0.0, 0.0, 0)
    gx, gy, gv = 0.0, 0.0, 0
    calib_window.clear()

One might say that these artificial safeguards are a sign of weak models; in the case of visibility prediction, that is admittedly true. However, setting aside the visibility issue, the safeguards simply inform the pipeline what we know about shuttle physics.

Moreover, when a human is annotating the frames, they are implicitly applying these checks e.g. “this blob really looks like a shuttle, but it’s miles away from where I last confidently predicted the shuttle head, so it’s probably just background noise”.

In practice, smart mode averages at 86 FPS and is much more stable than fast mode, making it the recommended mode of inference.
